Long range 50km waterproof vhf marine radio RS-507M sea radio

FOB Reference Price:Get Latest Price
$90.00 - $120.00 / Piece | 1 Piece/Pieces (Min. Order)
Color:
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Recent
Model Number:
RS-507M sea radio
Type:
Vehicle Mouted
Dimensions:
153x67x152mm
Frequency Range:
136-174MHz
Storage Channel:
88channels
Talk Range:
35-50KM
Product Name:
vhf marine radio RS-507M sea radio
Color:
black
Weight:
742g
Warranty:
12 Months
Output Power:
25W
Operating Voltage:
DC13.8V(15%)
Working mode:
FM(16K0G3E),DSC(16K0G2B)
Operating Temperature:
-20C~+60C
Channel Step:
12.5KHz/20KHz/25KHz c
IP-X7 Water proof:
1 Meter Depth For 30 Minutes Water-proof
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Color box
Port
Xiamen,Guanzhou,Hongkong
Lead Time :
Shipped in 0 days after payment


Long range 50km waterproof vhf marine radio RS-507M sea radio

Features:

1. Dual Bands Frequency Watch or Three Bands Frequency Watch

2.Buil-in DSC
3.Favorite Channel Selectable
4.Aqua Quake Draining
5.10 Weather Channels And Weather Alert
6.Large LED Display (Easy to see ,Easy to operate )
7.1 Meter Depth For 30 Minutes Water-proof , IP-X7 Water proof Class
8.External GPS Receiver
9. Scan Resume Timer

Product Description

 Long range 50km waterproof vhf marine radio RS-507M sea radio

Specifications:



 Frequency Range TX:156.025-157.425MHz RX:156.050-163.275MHz



Channel No. 88 channels



Type of Emission FM(16K0G3E),DSC(16K0G2B)



Frequency Stability 2.5ppm



Work Voltage (V) DC13.8V(15%)



Operating Temperature -20C~+60C



Antenna Impedance 50



Dimensions(W×H×D) 153×67×152mm



Weight 742g



Transmitter



RF Power Output High 25W/ Low 1W



Maximum Frequency Deviation 5KHz



Spurious and Harmonic -70dB(H)



-56dB(L)



Adjacent Channel Selectivity 70dB



TX Audio Distortion 10%



Current Consumption 5.5A(High power)



1.5A(Low power)



Input Impedance 2K(Microphone)



Receiver



RX Sensitivity 0.2µV



Squelch Sensitivity 5KHz



Adjacent Channel Selectivity 70dB



Intermodulation Anti-interference 70dB



Spurious Response Rejection 70dB



Max RX Current(mA) 1.5A



Rated Audio Output Power 4.5W(10%)



GPS Signal Format NMEA0183-2.0



Output Impedance 4 (Speaker)

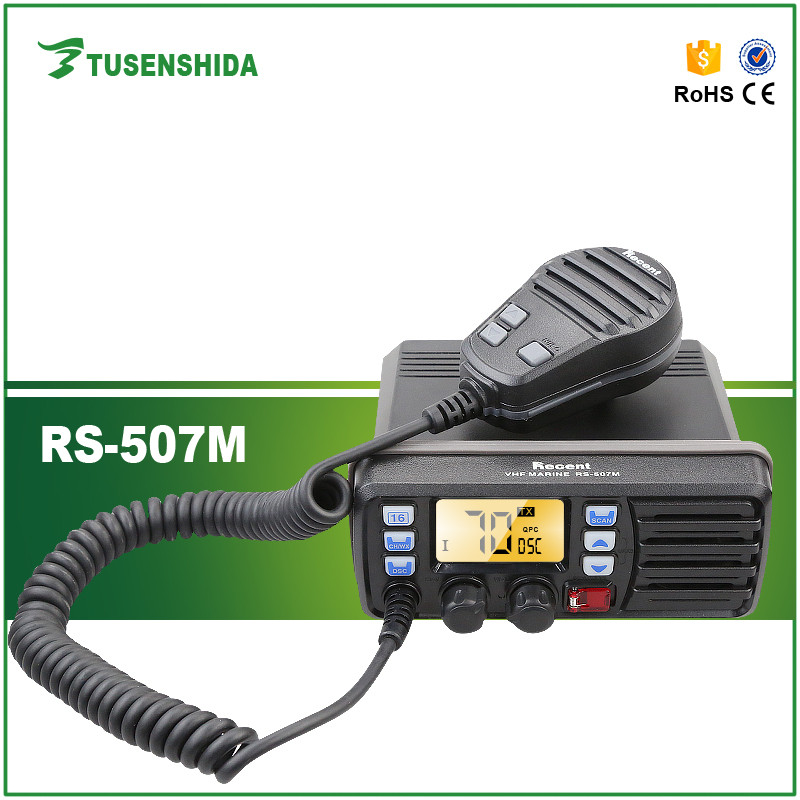

Product Display

 Long range 50km waterproof vhf marine radio RS-507M sea radio


Packaging & Shipping


Long range 50km waterproof vhf marine radio RS-507M sea radio

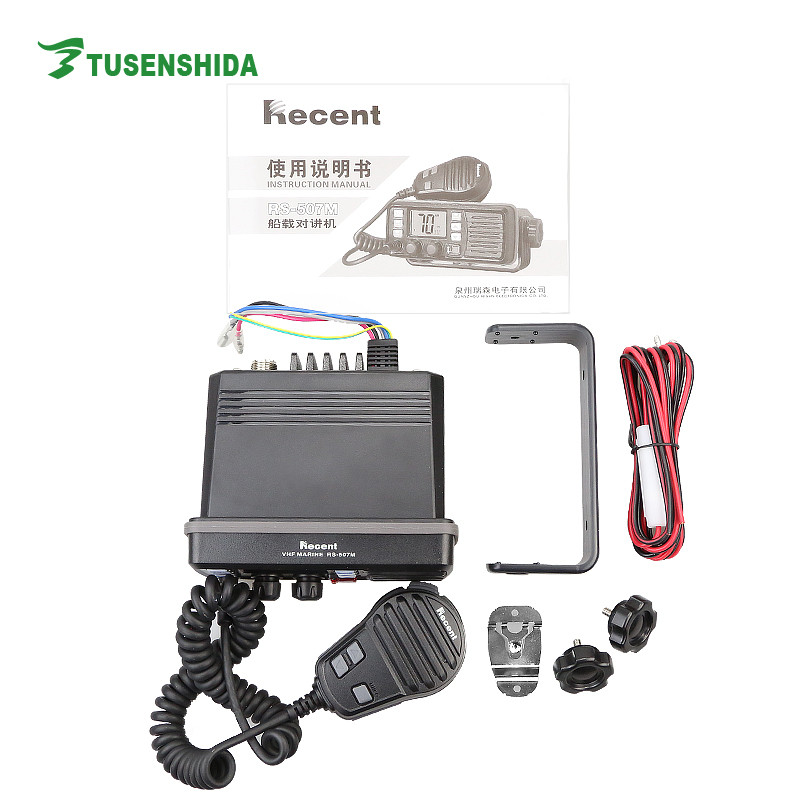

1 x  Mobile transceiver

1 x  DC Power Cable

1 x  Bracket

1 x  Bracket Screw

1 x  User’s Manual
